Hybrid Solar Diesel Generator Systems
Our Services !
Solar PV-Diesel Hybrid Systems
Hybrid Diesel Gensets – A Cost Effective Power Back-Up Solution for Industrial Users

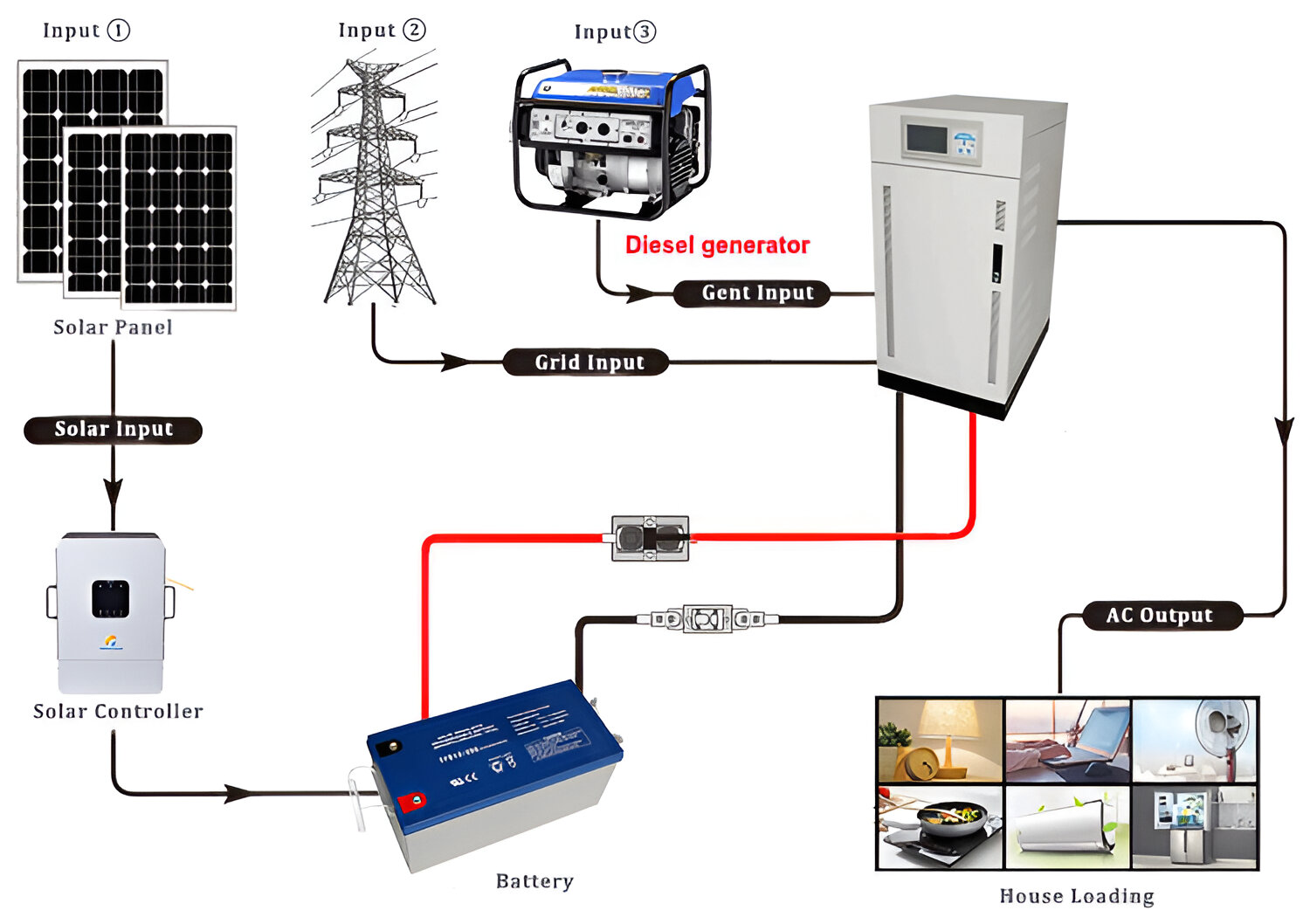

What Is a Hybrid Solar Diesel System?
Solar hybrid systems are power systems that combine solar power from a photovoltaic system with another energy source. One of the most common hybrid systems being PV diesel hybrid system, coupling PV and diesel generators, also known as diesel gensets. The diesel generators are used to steadily fill in the gap between the load and the power generated by the PV system.
Battery storages can be used to enhance the overall system performance to ensure that the amount of energy meets the demand. An energy management system can also be included to optimize the system as the diesel gensets capacity is limited and the solar energy production is inconsistent.
What Are the Advantages of a Solar Diesel Hybrid System?
There are multiples benefits to solar-diesel hybrid system.
Increased PV penetration: Voltage can be driven to unacceptable volatility or out-of-range values by PV solar systems, eOS solutions can be used to to support the integration of distributed PV solar on their grids.
No wasted Energy: With the right equipment, the energy generated during the day is not wasted or fed back into the grid. It can be stored and used whenever needed.
Uninterruptable Power: When the grid fails or when the PV production isn’t enough the system still keep going.
Hybrid Systems can be programmed: With the help of a EMS like the ePowerControl, hybrid systems can computer control their whole system and balance the available sources of energy. Elum Energy’s engineer can provide a custom control and monitoring solution giving more reliability and more savings as it reduce operating and maintenance cost in the long term.
Environment-Friendly: The use of sustainable resources reduces CO² emissions.
Fuel Efficiency: Implementing a Hybrid Fuel Saver Controller within the system can further enhance fuel efficiency, ensuring optimal use of diesel gensets in conjunction with PV power and battery storage.

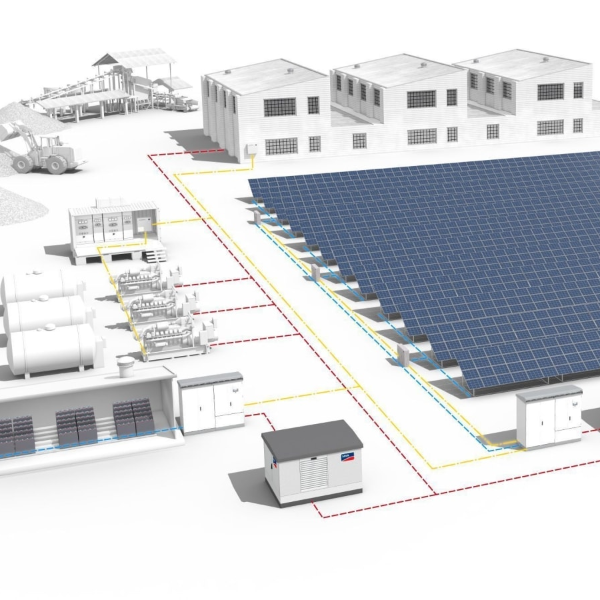

What is a Photovoltaic Diesel Hybrid System?
A “hybrid” is something that is formed by combining two kinds of components that produce the same or similar results. A photovoltaic diesel hybrid system ordinarily consists of a PV system, diesel gensets and intelligent management to ensure that the amount of solar energy fed into the system exactly matches the demand at that time. In contrast to conventional off-grid systems of up to 300 kW, in which a Sunny Island inverter serves as a master, the diesel gensets itself performs this function.
How Does a Photovoltaic Diesel Hybrid System Work?
Basically, the PV system complements the diesel gensets. It can supply additional energy when loads are high or relieve the genset to minimize its fuel consumption. In the future, excess energy could optionally be stored in batteries, making it possible for the hybrid system to use more solar power even at night. Intelligent management of various system components ensures optimal fuel economy and minimizes CO2 emissions.
What Are the Advantages of a Photovoltaic Diesel Hybrid System?
In contrast to power supply systems using diesel gensets, and despite their higher initial cost, PV systems can be amortized in as little as four to five years, depending on the site and system size, and they have low operating costs.
In addition, PV systems are flexible and can be expanded on a modular basis as the energy demand grows. Compared to pure gensets systems, a photovoltaic diesel hybrid system provides numerous advantages:
Lower fuel costs
Reduced risk of fuel price increases and supply shortages thanks to optimized planning
Minimal CO2 emissions (protects the environment and facilitates CO2 certificate trading)
Our solution for photovoltaic diesel hybrid system technology is the Fuel Save Solution. The information provided below explains how it works and you can learn other interesting facts.
What We Provide !
Photovoltaic Diesel Hybrid System
